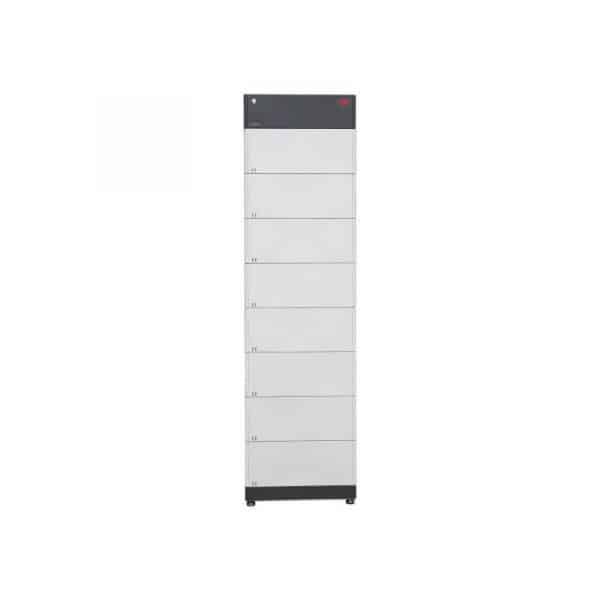

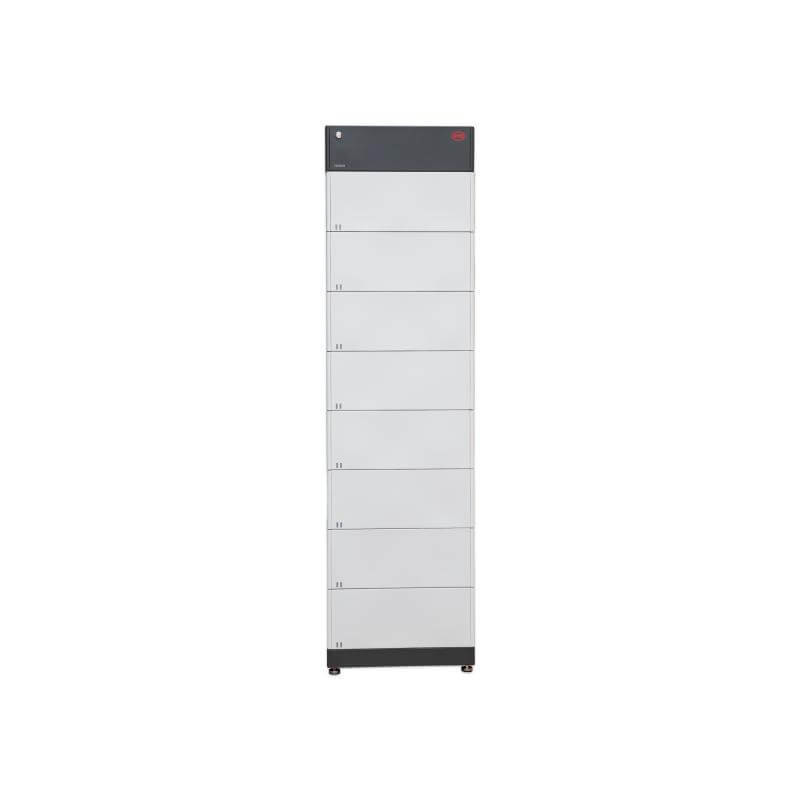

BYD B-BOX HVM 22.1
A Battery-Box Premium HVM consists of 3 to 8 HVM battery modules that are connected in series to achieve a capacity of 8.3 to 22.1 kWh.
The direct parallel connection of up to 3 identical Battery-Box Premium HVM also enables a maximum output of 66.2 kWh.
The system can be expanded later by adding additional HVM modules or parallel HVM towers.
- Powerful emergency/backup power and off-grid functionality
- Award-winning efficiency thanks to real series connection
- The patented modular plug-in design does not require any internal wiring and allows maximum flexibility and ease of use
- Cobalt-free lithium iron phosphate battery (LFP): maximum safety, durability and performance
- Compatible with leading 1- and 3-phase inverters
- Two different modules to cover the entire system size range
- The highest security standards such as VDE 2510-50
- Manufacturer warranty: 10 years
Technical Data
Battery modules | 2,76 kWh, 51,2V, 38kg |
Amount of battery modules | 8 |
Usable capacity | 22,08 kWh |
Max. output current | 50A |
Peak output current | 75A, 5s |
Nominal voltage | 409V |
Voltage range | 320-480V |
Dimensions (H/W/T) | 2110x585x298 mm |
Weight | 319kg |
Scope of delivery
- 8x Battery modules: HVM (2,76 kWh, 51,2V)
- 1x Control module: BCU+Base
Item number: BYD0010
