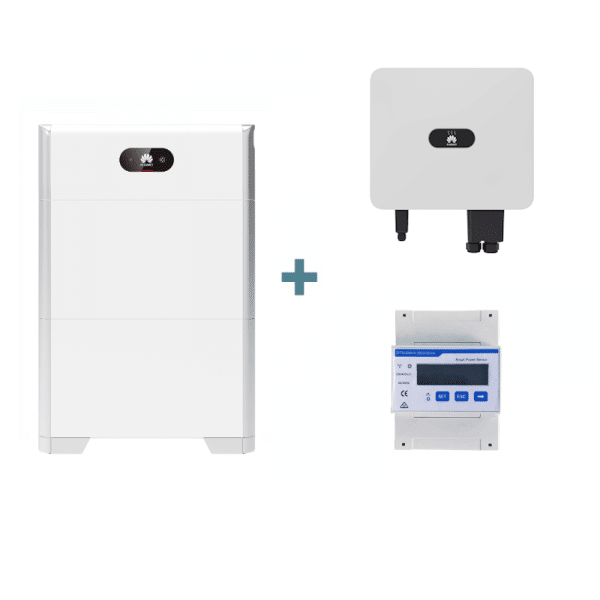

Huawei LUNA2000-10-S0 + HUAWEI SUN2000-15K-MB0

Included in the set:

• Huawei LUNA2000-10-S0
• Huawei SUN2000 15K-MB0
• Huawei Smart Power Sensor DTSU666-H 250A/50mA

Huawei LUNA2000-10-S0

Why you should choose a LUNA2000-10-S0 PV battery from Huawei now.

The Huawei Luna Smart String Battery offers a modular solution that is tailored precisely to your needs. With 10 kWh and the option of subsequent expansion, the Luna battery is ideal for responding to changing needs.
Note: No 3-phase backup power supply possible in the event of a mains failure.

Safe and reliable

• Capacity 10kWh
• Modular design (5kWh)
• Flexible planning
• Expandable up to 30 kWh
• Perfect compatibility
• Can be combined with single-phase and three-phase Huawei inverters
• Lithium iron phosphate cell
• Multi-level safety concept

Advantages

• Modular design with up to 15kWh
• Parallel operation with 2 systems, up to 30kWh
• Can be retrofitted at any time, plug and play
• DC system, reduces lossesLithium iron phosphate technology
• For indoor and outdoor installation
• Simple installation and quick commissioning
• Detection via APP
• 100% depth of discharge
• Charge optimization

HUAWEI SUN2000-15K-MB0

The new hybrid inverter MB0 series seamlessly follows on from the small M1 series with power classes from 12 to 25 kW. Proven features such as integrated overvoltage protection, arc detection and compatibility with Huawei’s own optimizers are of course included. There are also two separate battery connections, which enable suitable storage combinations in these power classes. The familiar LUNA battery with 5 kWh (S0 series) will soon be joined by its big sister with 7.0 kWh (S1 series).

Advantages

• High DC input current
• 2 battery connections *
• Integrated arc detection
• Compatible with all new Huawei optimizers *

Features

• AC power: 15,0 kW
• Number of MPPT: 2
• Number of bat connections: 2
• Max charging power: 16,5 kW
• Compatible storage systems: LUNA2000 S0 + S1
• AC connection: 3-phase
• Overvoltage protection: AC + DC type 2
• Communication: RS485, Wifi / LAN**, 4G / 3G / 2G**, EMMA** (AI Energy Management Assistant Q1/24)
• Protection class: IP66
• Cooling: active
• Dimensions (H x W x D) in mm: 460 x 546 x 228
• Weight: 21.0 kg

*Compatible with
Optimizer: SUN2000-450W-P2, SUN2000-600W-P, MERC-110W-P, MERC-1300W-P
Memory: LUNA2000 S0 + S1

**optionally available, for WLAN see Huawei SMART DONGLE-WLAN-FE

Huawei Smart Power Sensor DTSU666-H 250A/50mA

Why you should choose a Smart Power Sensor DTSU666-H 250A/50mA from Huawei now.

The Huawei Smart Power Sensor DTSU666-H is a three-phase current sensor for use in solar systems. The component processes a voltage of 176 to 288 volts and impresses with a very low power consumption of less than one watt. Installation is simple, easy and straightforward. Once the sensor is integrated, it displays the performance data on the built-in LCD screen and can also be operated effortlessly. In addition, the Huawei Smart Power Sensor DTSU666-H supports communication via RS485, meaning it can also be read out from another location. It uses the Modbus-RTU communication protocol for this purpose.

Another outstanding feature of the current sensor is its enormous precision. The measuring accuracy of the voltage is +/-0.5 %, the fluctuation in frequency is 0.01 Hz, and the sensor measures current, power and energy with a maximum deviation of +/-1 %. This ensures classification in accuracy class >1. The other technical data should also be noted. The sensor is housed in a casing measuring 100 x 72 x 65.5 mm and weighs 1.5 kg, including cabling. This allows the compact element to be accommodated in a space-saving manner. The possible operating temperature is between -25 °C and +60 °C, the component tolerates a relative humidity of 5 % to 95 %. Current can be measured up to 250 A.

The scope of delivery includes three hinged current transformers with a cable length of 5 m and an RS485 cable with a length of 10 m.

Advantages

• 3-phase Smart Power Sensor
• 176-288 Volt voltage
• Accuracy class > 1
• Simple operation via LCD display
• Power consumption ≤1 W
• Communication via RS485

Item number: HUA0002 + HUA0026 + HUA0015
