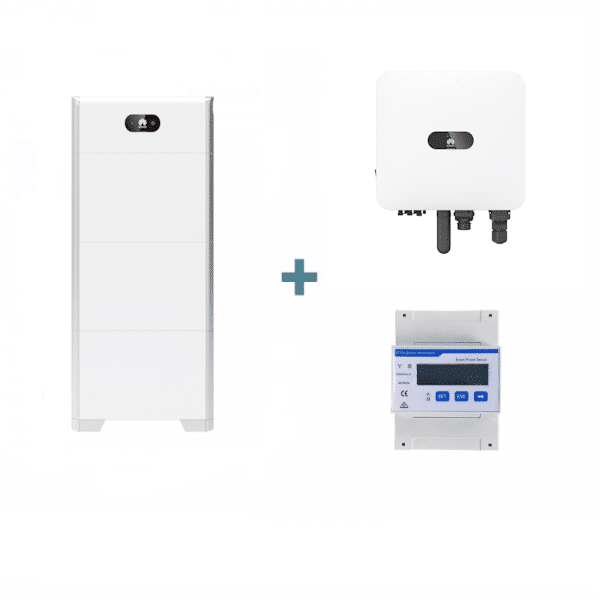

Huawei LUNA2000-15-S0 + Huawei SUN2000 5K-MAP0

Included in the set:

• Huawei LUNA2000-15-S0
• Huawei SUN2000 5K-MAP0
• Huawei Smart Power Sensor DTSU666-H 250A/50mA

Huawei LUNA2000-15-S0

Why you should choose a Huawei LUNA2000-5-S0 PV battery now.

The Huawei Luna Smart String Battery offers a modular solution tailored to your needs. With 15 kWh and the ability to expand at a later date, the Luna battery is ideal for responding to changing needs.
Note: No 3-phase backup power supply available in case of mains failure.

Safe and reliable

• Capacity 15kWh
• Modular design (5kWh)
• Flexible planning
• Expandable up to 30 kWh
• Perfect compatibility
• Can be combined with single-phase and three-phase Huawei inverters
• Lithium iron phosphate cell
• Multi-level safety concept

Advantages

• Modular design with up to 15kWh
• Parallel operation with 2 systems, up to 30kWh
• Can be retrofitted at any time, plug and play
• DC system, reduces losses
• Lithium iron phosphate technology
• For indoor and outdoor installation
• Easy installation and fast commissioning
• Detection via APP
• 100% depth of discharge
• Charge optimization

HUAWEI SUN2000-5K-MAP0

The Huawei SUN2000-MAP0 hybrid inverter series offers a high degree of flexibility in energy management – from generation to storage and consumption. A special feature of this series is the ability to charge asynchronously. The hybrid inverter can supplement the function of the storage system asynchronously so that each phase draws the required power from the grid to supply high loads. This allows the energy storage system (ESS) to draw additional load power from the grid when required.

The MAP0 series is ideal for use in combination with the LUNA storage systems, the SmartGuard backup solution and the EMMA energy management assistant.

Advantages:

• Asymmetrical three-phase charging
• Enables a short-term overload of up to 200%
• Active safety through new risk minimization strategies
• Full backup possible with Huawei SmartGuard-63A-T0
• Compatible with Huawei optimizers*

Features:

• AC power: 5.0 kW
• Number of MPPT: 2
• Max. European efficiency: 97.5%
• Max. Efficiency: 98.4%
• Max. PV power (recommended): 9.0 Wp
• AC connection: 3-phase
• Overvoltage protection: Type 2 AC + DC
• Communication: RS485, WLAN/LAN with dongle
• Protection class: IP66
• Cooling: passive
• Dimensions (H x W x D) in mm: 460 x 490 x 130
• Weight: 21 kg

*Compatible optimizers: SUN2000-450W-P2, SUN2000-600W-P, MERC-600W-PA0

Huawei Smart Power Sensor DTSU666-H 250A/50mA

Why you should choose a Huawei DTSU666-H 250A/50mA Smart Power Sensor now.

The Huawei Smart Power Sensor DTSU666-H is a three-phase current sensor for use in solar power systems. The component processes a voltage of 176 to 288 volts and impresses with a very low power consumption of less than one watt. Installation is simple, easy and effortless. Once the sensor is integrated, it displays the power data via the built-in LCD screen and can also be operated effortlessly via it. In addition, the Huawei Smart Power Sensor DTSU666-H supports communication via RS485, so it can also be read out from another location. It uses the Modbus RTU communication protocol for this purpose.

Another outstanding feature of the current sensor is its enormous precision. The measurement accuracy of the voltage is +/-0.5%, for the frequency the fluctuation is 0.01 Hz, current, power and energy are measured by the sensor with a deviation of +/-1% at most. This ensures the classification in the accuracy class >1. It should also be noted the other technical data. The sensor is housed in a 100 x 72 x 65.5 mm case and weighs 1.5 kg, calculated including cabling. This allows a space-saving accommodation of the compact element. The possible operating temperature is between -25 °C and +60 °C, the component tolerates a relative humidity of 5 % to 95 %. Current can be measured up to 250 A.
The scope of delivery includes three folding current transformers with 5 m cable length and an RS485 cable with 10 m length.

Advantages

• 3-phase Smart Power Sensor
• 176-288 volts voltage
• Accuracy class > 1
• Easy operation via LCD display
• Power consumption ≤1 W
• Communication via RS485

Item number: HUA0003 + HUA0036 + HUA0015
