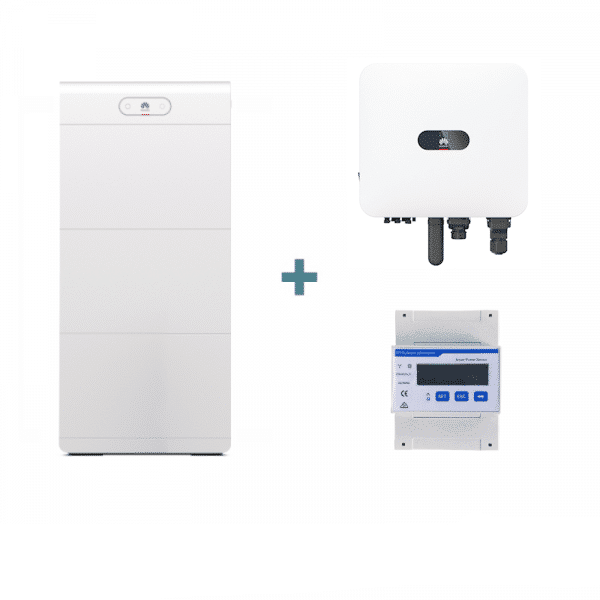

Huawei LUNA2000-21-S1 + HUAWEI SUN2000-12K-MAP0

Included in the set:

• Huawei LUNA2000-21-S1
• Huawei SUN2000 12K-MAP0
• Huawei Smart Power Sensor DTSU666-H 250A/50mA

Huawei LUNA2000-21-S1

Safety and security

• 5-stage safety concept
• Protection at cell level as well as electrical and structural safety measures
• Active safety systems and emergency precautions are integrated

Advantages

• Capacity 21 kWh
• Parallel operation with 2 systems, up to 21 kWh
• Can be retrofitted at any time, plug and play
• Can be combined with single-phase and three-phase Huawei inverters
• For indoor and outdoor installation

HUAWEI SUN2000-12K-MAP0

The Huawei SUN2000-MAP0 hybrid inverter series offers a high degree of flexibility in energy management – from generation to storage and consumption. A special feature of this series is the ability to charge asynchronously. The hybrid inverter can supplement the function of the storage system asynchronously so that each phase draws the required power from the grid to supply high loads. This allows the energy storage system (ESS) to draw additional load power from the grid when required.

The MAP0 series is ideal for use in combination with the LUNA storage systems, the SmartGuard backup solution and the EMMA energy management assistant.

Advantages:

• Asymmetrical three-phase charging
• Enables a short-term overload of up to 200%
• Active safety through new risk minimization strategies
• Full backup possible with Huawei SmartGuard-63A-T0
• Compatible with Huawei optimizers*

Features:

• AC power: 12.0 kW
• Number of MPPT: 2
• Max. European efficiency: 98.2%
• Max. Efficiency: 98.6%
• Max. PV power (recommended): 22.0 Wp
• AC connection: 3-phase
• Overvoltage protection: Type 2 AC + DC
• Communication: RS485, WLAN/LAN with Dongle
• Protection class: IP66
• Cooling: passive
• Dimensions (H x W x D) in mm: 460 x 490 x 130
• Weight: 21 kg

*Compatible optimizers: SUN2000-450W-P2, SUN2000-600W-P, MERC-600W-PA0

Huawei Smart Power Sensor DTSU666-H 250A/50mA

Why you should choose a Smart Power Sensor DTSU666-H 250A/50mA from Huawei now.

The Huawei Smart Power Sensor DTSU666-H is a three-phase current sensor for use in solar systems. The component processes a voltage of 176 to 288 volts and impresses with a very low power consumption of less than one watt. Installation is simple, easy and straightforward. Once the sensor is integrated, it displays the performance data on the built-in LCD screen and can also be operated effortlessly. In addition, the Huawei Smart Power Sensor DTSU666-H supports communication via RS485, meaning it can also be read out from another location. It uses the Modbus-RTU communication protocol for this purpose.

Another outstanding feature of the current sensor is its enormous precision. The measuring accuracy of the voltage is +/-0.5 %, the fluctuation in frequency is 0.01 Hz, and the sensor measures current, power and energy with a maximum deviation of +/-1 %. This ensures classification in accuracy class >1. The other technical data should also be noted. The sensor is housed in a casing measuring 100 x 72 x 65.5 mm and weighs 1.5 kg, including cabling. This allows the compact element to be accommodated in a space-saving manner. The possible operating temperature is between -25 °C and +60 °C, the component tolerates a relative humidity of 5 % to 95 %. Current can be measured up to 250 A.
The scope of delivery includes three hinged current transformers with a cable length of 5 m and an RS485 cable with a length of 10 m.

Advantages

• 3-phase Smart Power Sensor
• 176-288 Volt voltage
• Accuracy class > 1
• Simple operation via LCD display
• Power consumption ≤1 W
• Communication via RS485

Item number: HUA0033 + HUA0040 + HUA0015
