Tested B-goods:
Returned goods, no original packaging
The versatile charging station.

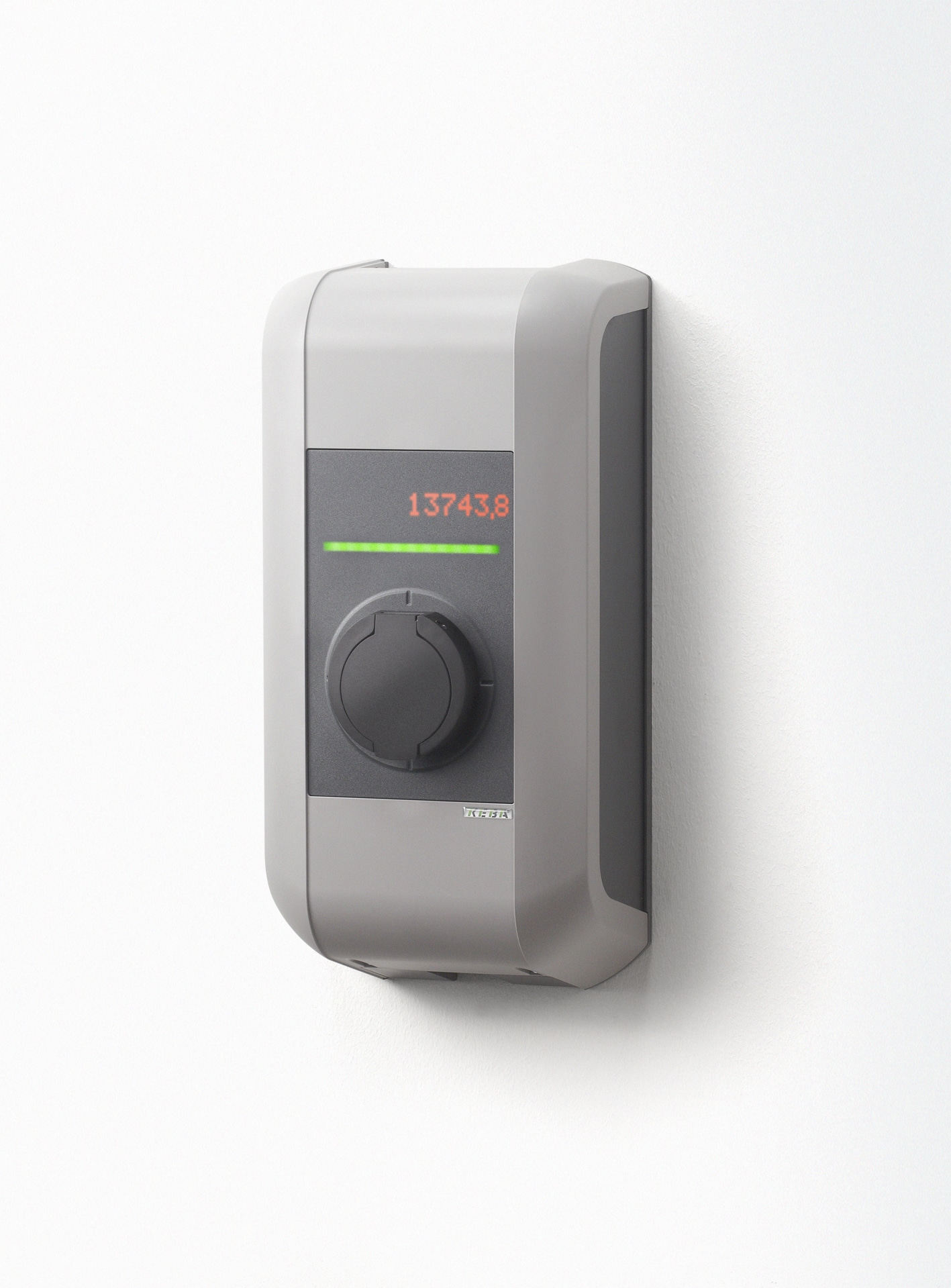

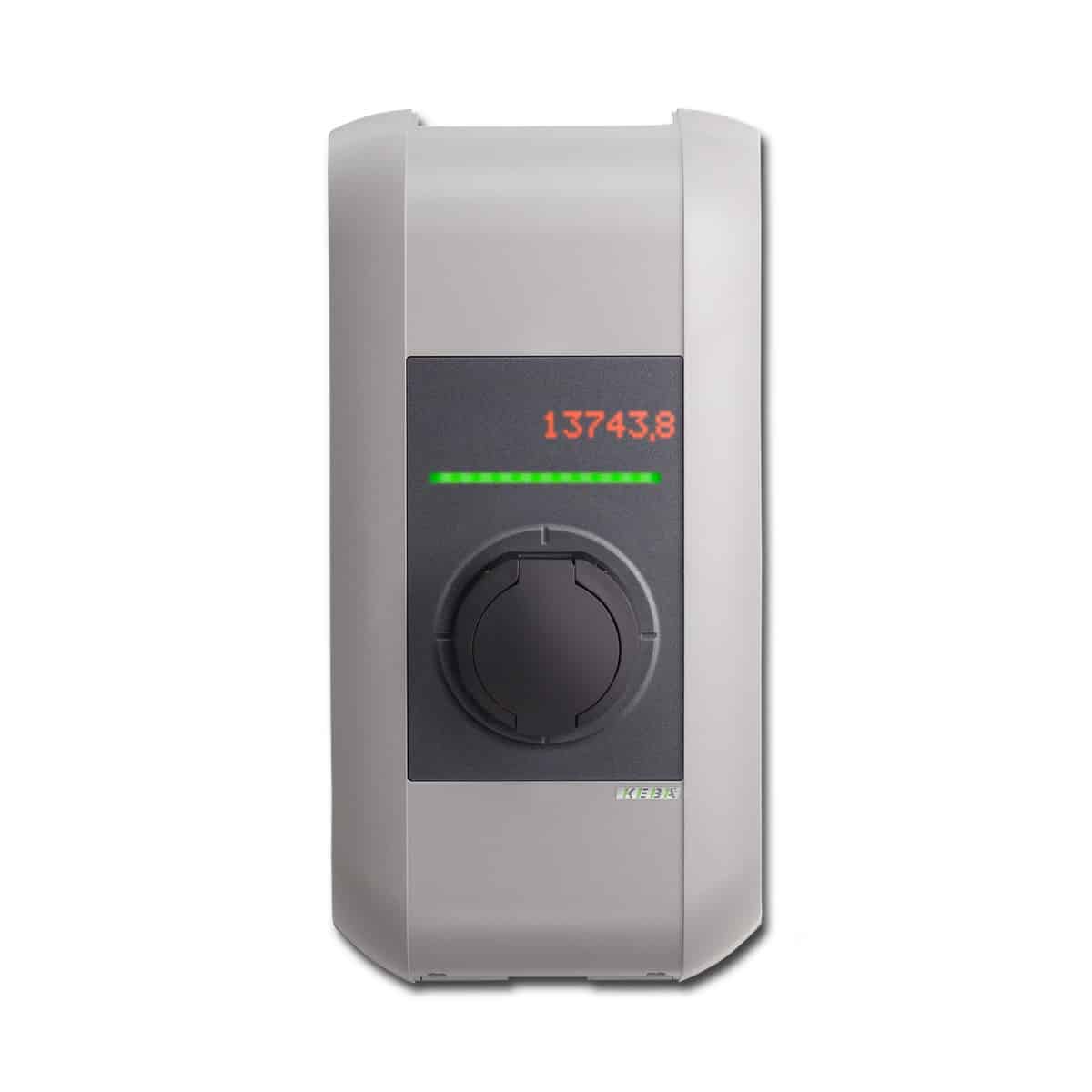

With the KeContact P30 c-series charging station, you have the opportunity to massively expand the application area of ​​your charging infrastructure projects.
The KeContact P30 c-series has intelligent interfaces for communication with inverters and other smart home devices.
In addition, it offers the option of operating dynamic load management in conjunction with other C-series charging stations, together with a KeContact P30 x-series charging station. In this way, you can dynamically and easily distribute the available connected load across several charging stations in the same network.
Together with an intelligent energy consumption manager, such as the Smartfox, you can specifically use excess electricity (photovoltaics) to charge your electric vehicle.
Billing systems are also possible thanks to the KeContact P30 c-series protocols.
It is equipped with a type 2 standard socket and offers a charging capacity of up to 22 kW.
Thanks to the integrated DC 6mA residual current protection, an inexpensive FI type A is sufficient for the supply line.
Product features:
- KeContact P30 c-series
- with type 2 standard socket
- 22 kW charging power
- With RFID authentication option
- Ethernet LSA + for a permanent communication connection to the OCPP backend, smart home server or another KeContact P30
- OCPP load management as slave (up to 15 KeContact P30 c-series to an x-series as OCPP host)
- Local load management as a slave
- Nissan EV and Renault ZE 1.2 ready
- CE marking
- UL certification
- VDE certified
- DC residual current monitoring
- Overcurrent detection
- Enable input / switching output
- Outside temperature range from -25 ° to + 40 ° (32A) or up to + 50 ° (16A), IP54
- USB and Ethernet RJ45 for firmware updates or log file downloads with a PC or notebook
- Custom branding possible
- Energy meter (MID-certified)
Manufacturer item number: 102.637
Article number: 2506-B-Ware
