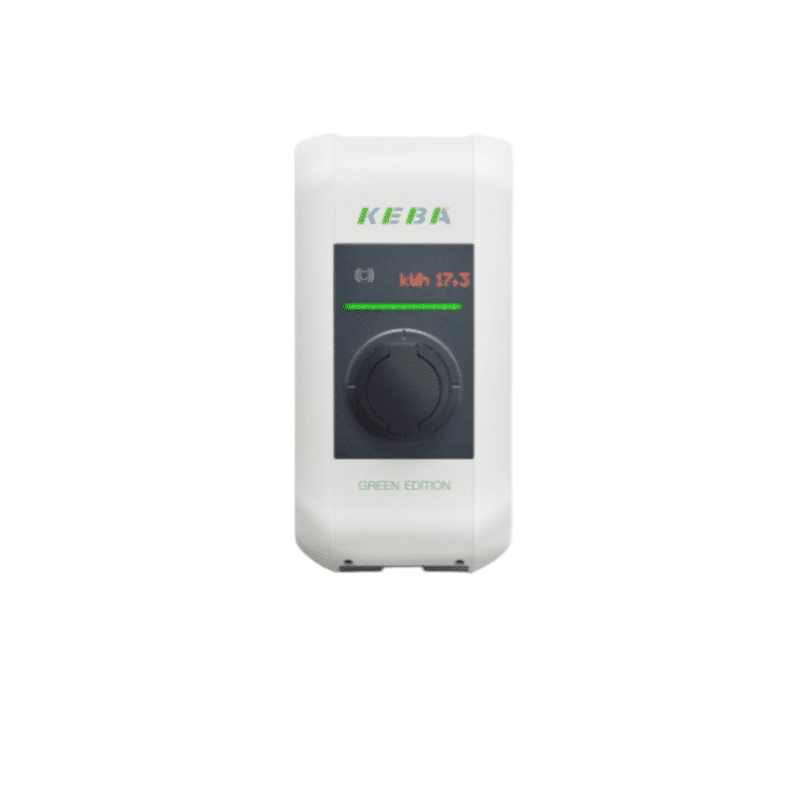

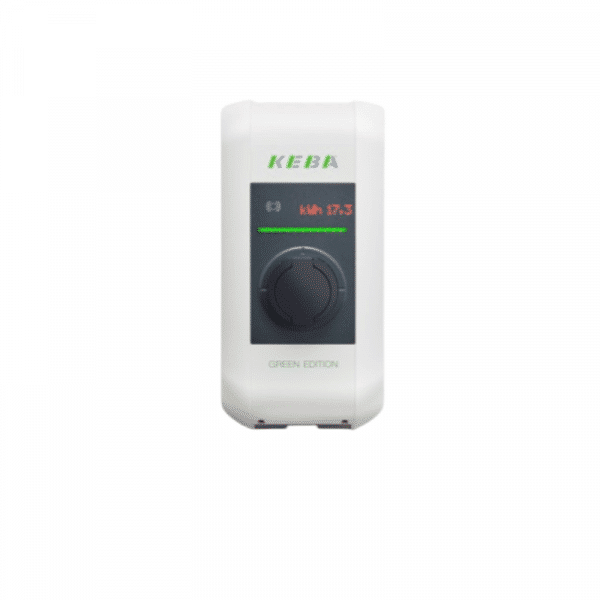

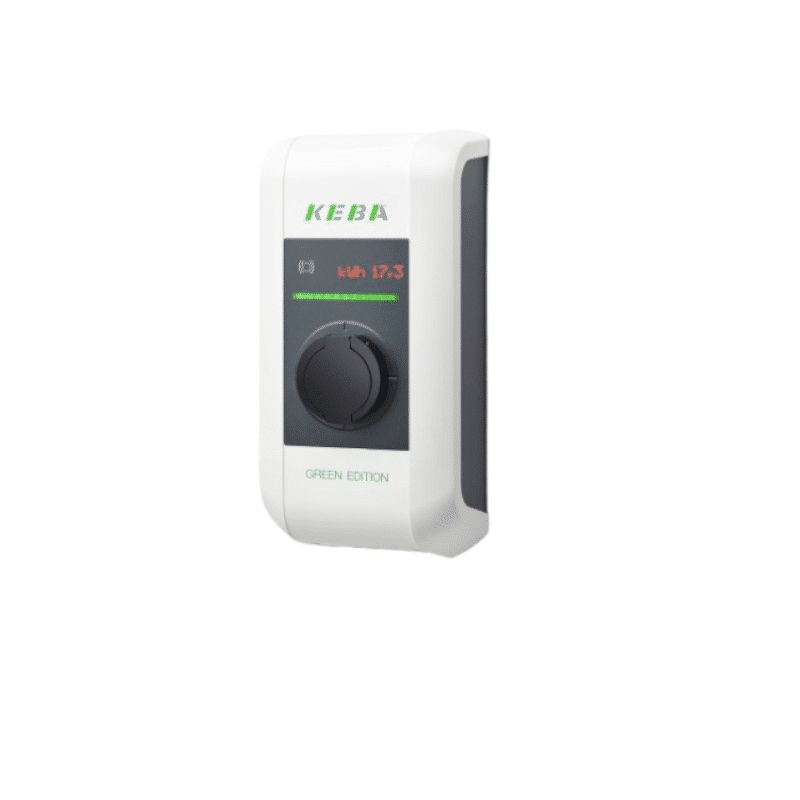

KeContact P30 x-series
The x-series wallbox is an all-rounder and stands for the intelligent control of several charging points including dynamic load management.
One x-series wallbox can control up to 15 c-series devices. With the associated web interface, it is possible to view central settings as well as individual charging sessions.
All x-series models feature a WLAN communication interface as standard.
Advantages:
- 3-phase charging
- Max. Charging power: 22 kW
- integrated energy meter
- WLAN
- ISO15118 hardware-ready
- intelligent charging
- optimized PV surplus charging
- MID-certified energy meter for billing purposes
- RFID user authorization
- Modbus TCP (active) for dynamic house connection monitoring with external electricity meter
- 4G/LTE for wireless data transmission (data) SIM card required
- WLAN communication for wireless integration into networks
- Web interface for configuration settings
- Loggable charging session up to 3 months (offline)
- KEBA eMobility App
- Charging control by Smart Home & energy management systems via UDP & Modbus TCP passive
- Local static/dynamic load management as master
- OCCP communication as master or standalone
- Ethernet interface (LSA+) for permanent connectionDisplay freely programmable
- Energy counter
- LED bar status display
- DC fault current detection
- Enable input/switching output
- Ethernet interface (RJ45) – Debug
- USB interface
- Z.E. Ready / EV Ready
Manufacturer warranty: 2 years
Manufacturer article number: 125.101
Item number: KEB0020
