SolarEdge Optimierer S440-1GM4MRM

Rated 4.71 out of 5 based on 7 customer ratings

(0 customer reviews)

65,00 €

incl. 20% VAT

Free shipping to Austria & Germany

Shipping time: 1-3 business days

In stock

SKU: SOE0011 Categories: 1-PV_all, SolarEdge_Zubehör, Kleinteile

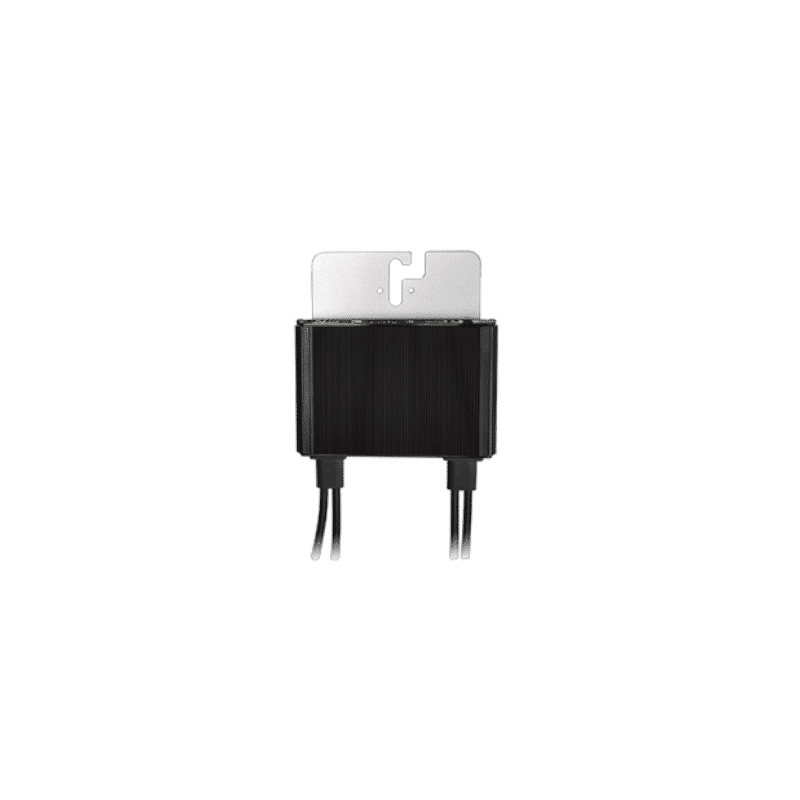

SolarEdge S440 Power Optimizer for Solar Modules up to 440 Watts

SolarEdge power optimizers can be used to get the maximum power out of any PV system. The S440 optimizer is perfect for modules up to 440 Wp.

Power losses for an entire string due to shading or different orientations are a thing of the past with SolarEdge power optimizers. Thanks to module-level MPP tracking, each module is controlled individually, allowing the string to deliver the maximum available power. Easy installation and maximum yield is easy with the S440 optimizers.

Benefits:

Maximum power at module level
not the whole string affected by shading
continuous MPP tracking
monitoring on module level possible
more power in case of shading and different orientations
modules of different power classes can be combined without losses
detects abnormal behavior of PV connectors,
prevents potential safety problems.

Features SolarEdge SE7K-EN4:

MPPT operating range 8 – 60 V
Modules up to 440 Watt
14.5 A max. short circuit current
easy installation thanks to MC4 connection
0.1 m input cable
2.3 m output cable
SafeDC function automatically reduces the voltage to 1 volt per module in the event of a fault
easy mounting on substructure with hammerhead screw
compatible with all SolarEdge inverters
min. 8 optimizers per string for 1 phase inverters
min. 16 optimizers per string for 3 phase inverters
min. 18 optimizers per string with 3 phase inverters and 277/480 V grid

SolarEdge inverters are designed and intended for use with SolarEdge Module Optimizers only. Together with the product advantages of the module optimizers, you get the most innovative technology in the solar sector.

Manufacturer Article No.: S440-1GM4MRM

Manufacturer warranty: 25 years

Item number: SOE0011

Downloads

Datenblatt

Technical data

MPPT operating range 8 – 60 V
Modules up to 440 Watt
14.5 A max. short circuit current
easy installation thanks to MC4 connection
0.1 m input cable
2.3 m output cable
SafeDC function automatically reduces the voltage to 1 volt per module in the event of a fault
easy mounting on substructure with hammerhead screw
compatible with all SolarEdge inverters
min. 8 optimizers per string for 1 phase inverters
min. 16 optimizers per string for 3 phase inverters
min. 18 optimizers per string for 3 phase inverters and 277/480 V grid
