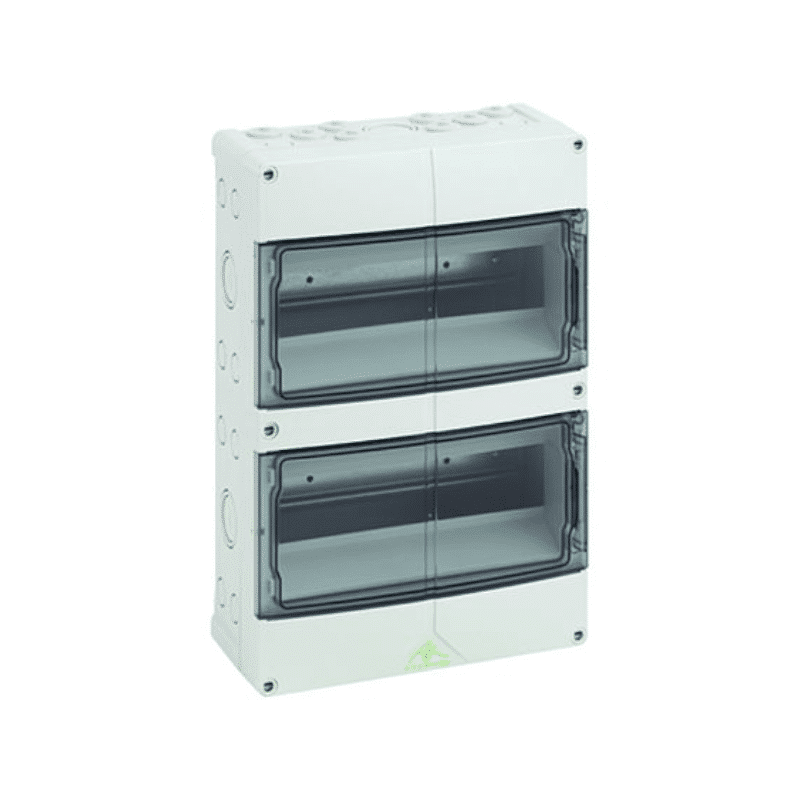

SPELSBERG AKi 24 small distributor (73642401)

• Small distribution boards, 3-24 TE
• Partition units: 24
• Rated operating voltage: 400V AC
• Rated insulation voltage: 1000V AC/1000V DC
• PE/N terminal, terminal point(s) 16mm² and 6mm²
• Eight elastic entries at the top
• Cover and labeling strips
• Insulating plugs, additional double membrane glands (replaceable with M20 cable glands)
• IP65 robust and halogen-free design IK08
• for installation in industrial environments and protected outdoor areas
• Dimensions in mm (HxWxD): 122x250x370

Manufacturer article number: 73642401
Item number: EIM0036
